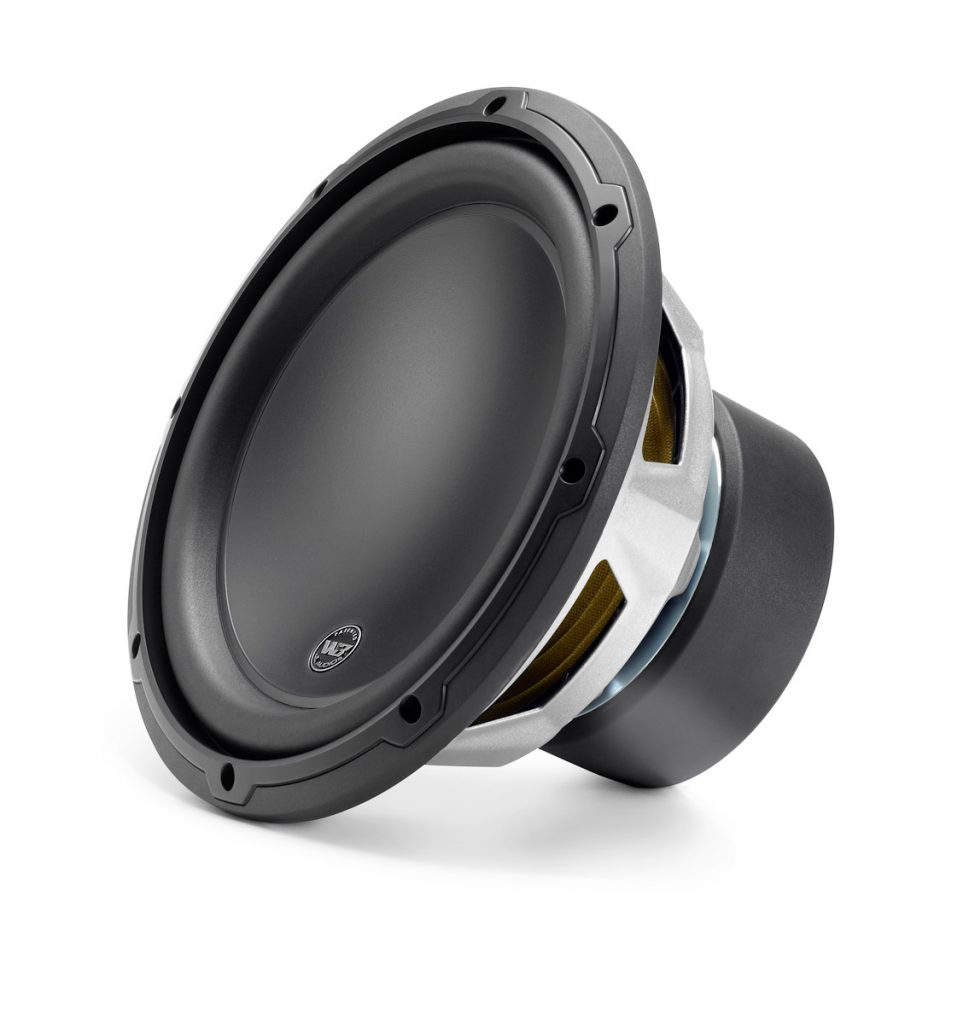

JL Audio 10W3v3 10-inch Subwoofer Driver

W3v3 Product Spotlight

Categories: , , Tags:
Description

W3v3 10-inch Subwoofer Driver (500 W, 2 Ω or 4 Ω)

This acclaimed subwoofer driver strikes an outstanding balance in power handling, enclosure requirements and excursion to deliver excellent results in medium power applications. Several exclusive JL Audio technologies and proprietary assembly techniques are applied to the 10W3v3 to enhance linearity and reliability.

The 10W3v3-2 is best used with amplifier power in the 150W – 500W range and is optimized to operate in a compact 0.625 cu. ft. (17.7  l) sealed enclosure, or a 1.25 cu. ft. (35.4 l) ported enclosure.

Table_Image
Continuous Power Handling (RMS) 500 W
Recommended Amplifier Power (RMS) 150- 500 W
Nominal Impedance (Znom) 2 Ω or 4 Ω
