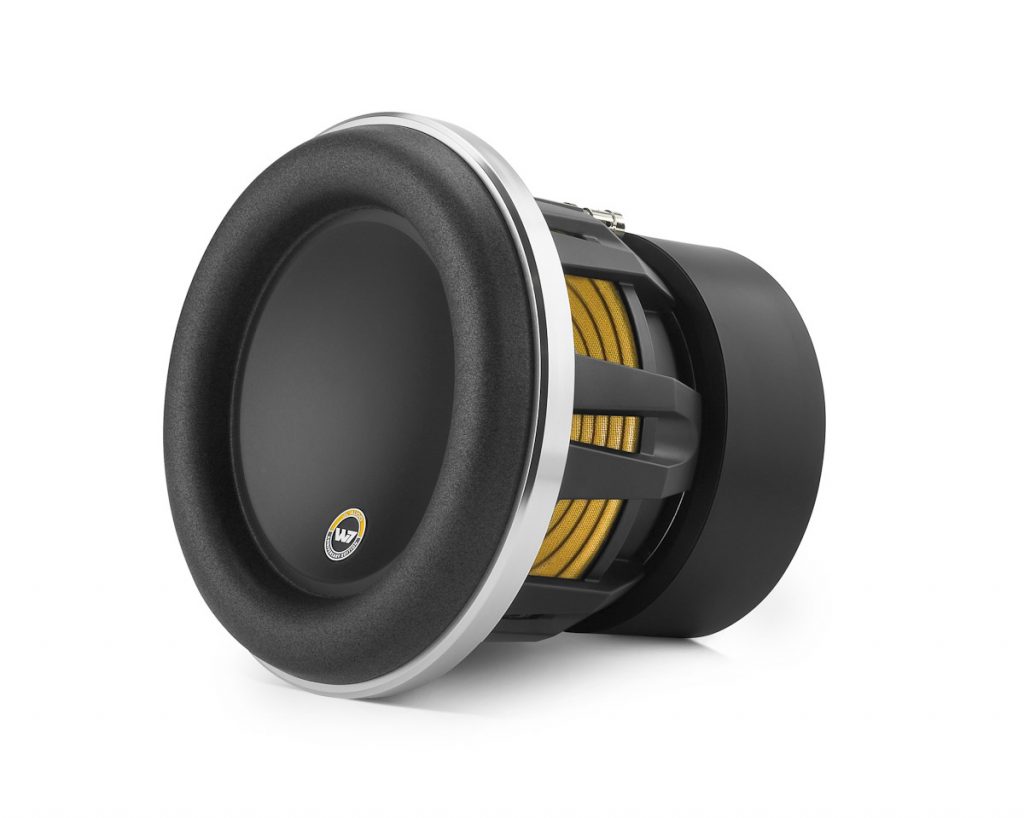

JL Audio 8W7AE 8-inch Subwoofer Driver

Categories: , , Tags:
Description

10th Anniversary Edition – W7 8-inch Subwoofer Driver (500 W, 3 Ω)

This subwoofer driver has been called the “best damn 8-inch subwoofer ever made” for its remarkable performance capabilities and design attributes. An impressive linear excursion envelope that exceeds 0.75 in. (19 mm) one-way allows it to deliver impact well beyond the range of other 8-inch subwoofer drivers.

The 8W7AE is best used with amplifier power in the 200W – 500W range and is optimized to operate in a 0.875 cu. ft. (24.8 l) sealed enclosure, or a 1.0 cu. ft. (28.3 l) ported enclosure. Detailed enclosure recommendations can be found in the “Specifications” tab.

W7AE (Anniversary Edition) Subwoofers celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7’s, but are they distinguished by the following cosmetic differences:

  • Satin-Black Powdercoated Baskets
  • Bright Anodized Surround Clamp Ring
  • Anniversary Edition Cone Badge
  • Anniversary Edition Terminal Label
Table_Image
Continuous Power Handling (RMS) 500 W
Recommended Amplifier Power (RMS) 200 – 500 W
Nominal Impedance (Znom) 3 Ω
