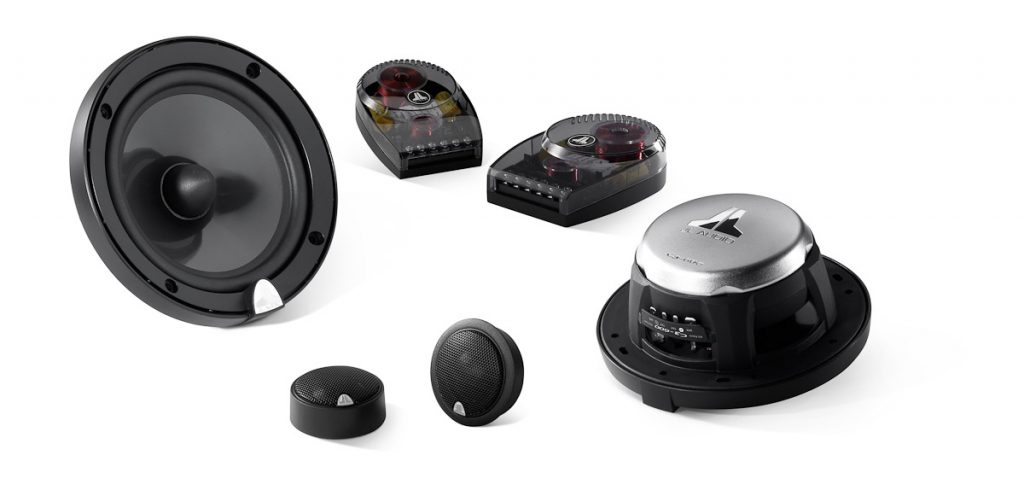

June 6, 20182-Way Convertible Component / Coaxial System: 6-inch (150 mm) Woofer, 1-inch (25 mm) Silk Dome Tweeter
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
The new C3-600 expands the C3 lineup with a direct-fit product for many Japanese vehicles that will not accept a full-size 6.5-inch speaker.
The C3-600 system features 6-inch (150 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio’s vast woofer design experience and advanced modeling systems.
The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.
C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!
Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Sold as a pair.
Continuous Power Handling (RMS) | 75 W |
Peak Music Power | 225 W |
Recommended Amplifier Power (RMS) | 25 – 150 W / Ch. |
System Efficiency | 89.5 dB @ 1 W / 1 m |
System Nominal Impedance | 4 Ω |
System Frequency Response | 50 Hz – 25 KHz ± 3 dB |
