JL Audio TwK-D8 System Tuning DSP controlled by TüN software, Digital INPUT ONLY / 8-ch. Analog Outputs

Description

System Tuning DSP with Digital Optical Input / 8-ch. Stereo RCA Outputs / 1 Digital Optical OutputTwK Product Spotlight

The TwK™ D8 is a state-of-the-art digital signal processor engineered to deliver world-class system tuning capabilities in an easy-to-use format.
Equipped with an advanced 24-bit DSP processor, the TwK™ D8 is equipped with a digital optical (Toslink) input and connects directly to our FiX™ 82 OEM Integration DSP, or any 2-channel digital (S/PDIF) output, to maintain an all-digital signal path.

The TwK™ D8 is also equipped with flexible output options, 80 total bands of equalization and powerful mixing tools. The included DRC-200 Digital Remote Controller offers dual level controls, toggles up to six presets, and has an LED indicator.

Control the TwK™ D8’s entire feature set by connecting it to your PC via USB, using the companion TüN™ Software interface.

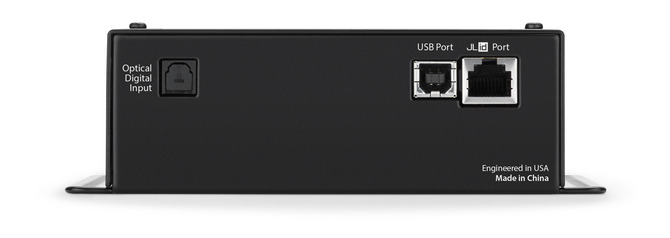

  • All-digital, optical (Toslink) input connects directly to any digital (S/PDIF) output.
  • Flexible input mixer allows left and right input channels to be combined with full control over each input’s level and polarity.
  • 8 banks of 10-band graphic or parametric equalizers with configurable EQ assignment
  • Powerful crossover section with fully variable, high-pass and low-pass filters, crossover slopes are selectable from 6 dB/octave to 48 dB/octave (in 6 dB/octave increments)
  • Configurable polarity and delay settings, with separate entries for speaker distance plus offset control; fully linkable with other channels, in any combination, for adjustment
  • Precise output level controls, adjustable in 0.5 or 0.1 dB increments, fully linkable with other channels, in any combination

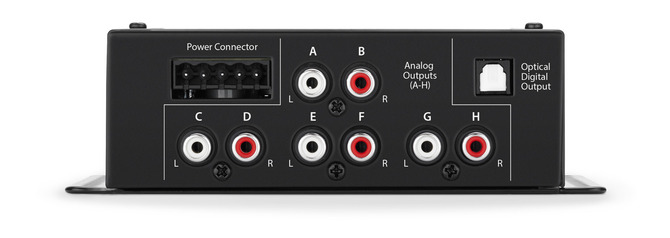

  • 8 analog, line-level RCA output jacks (4V RMS)TuN Logo
  • Optical (Toslink) output jack provides a pass-through digital audio (S/PDIF) signal from any pair of input channels, with no signal processing applied.



Specifications:

Power Supply Type Regulated DC-DC SMPS
Input Operating Voltage 10 – 16 VDC
Standby Current Draw <1.5 mA
Operating Current Draw 0.7 A
Recommended Fuse Value 1 A
Input Channels Single Digital Input
Input Type Differential-Balanced
Input Voltage Range 250 mV – 7.1 V RMS
Minimum Input Voltage 10 mV RMS
Input Level Setting N/A
Output Channels Eight
Analog Output Unbalanced, stereo RCA jacks
Digital Output Optical (Toslink) output (S/PDIF)
Output Impedance 450 Ω
Latency Optical – Optical: 4.860 mS
Optical – Analog: 4.805 mS
S/N Ratio 96 dB (A-Weighted, referred to 4V RMS Output)
THD+N @ Rated Output 0.02% (20 Hz – 20 kHz)
